ESP8266 for LED strips

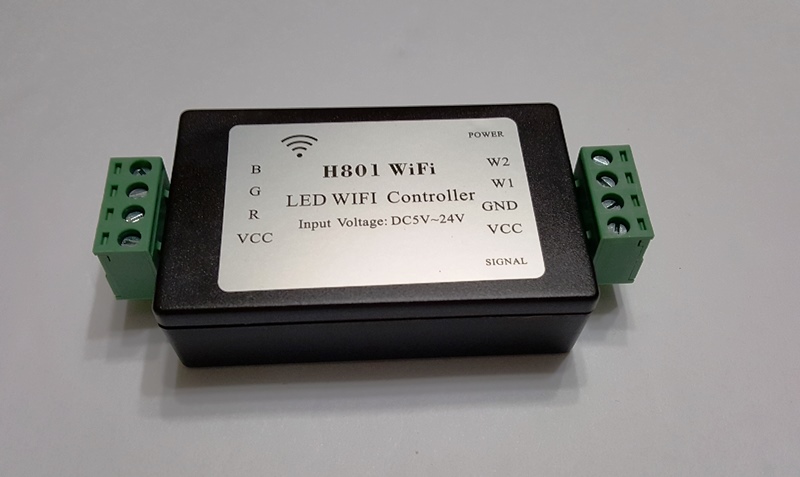

I was surprised but this came in the mail today

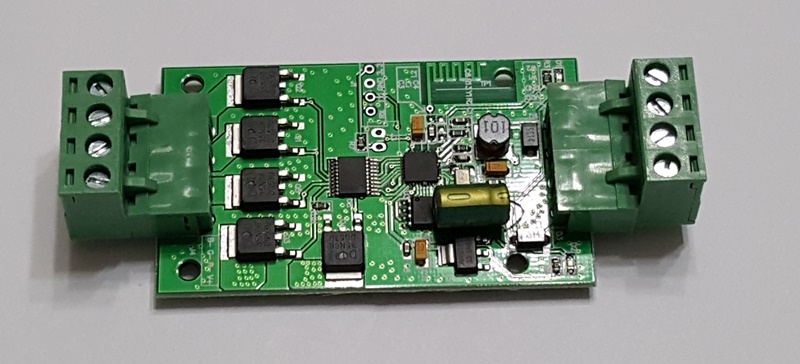

I did a bit of research before I purchased it, I purchased it because it had an ESP8266 and was relatively mod friendly.

The Serial ports are clearly labeled and people have already written alternate firmware for it.

Here are what the GPIO ports map to

const byte redpin=12;
const byte greenpin=15;
const byte bluepin=13;
const byte white1pin=14;
const byte white2pin=4;
const byte greenledpin=5;
const byte redledpin=1;

Should be easy to code my own stuff.

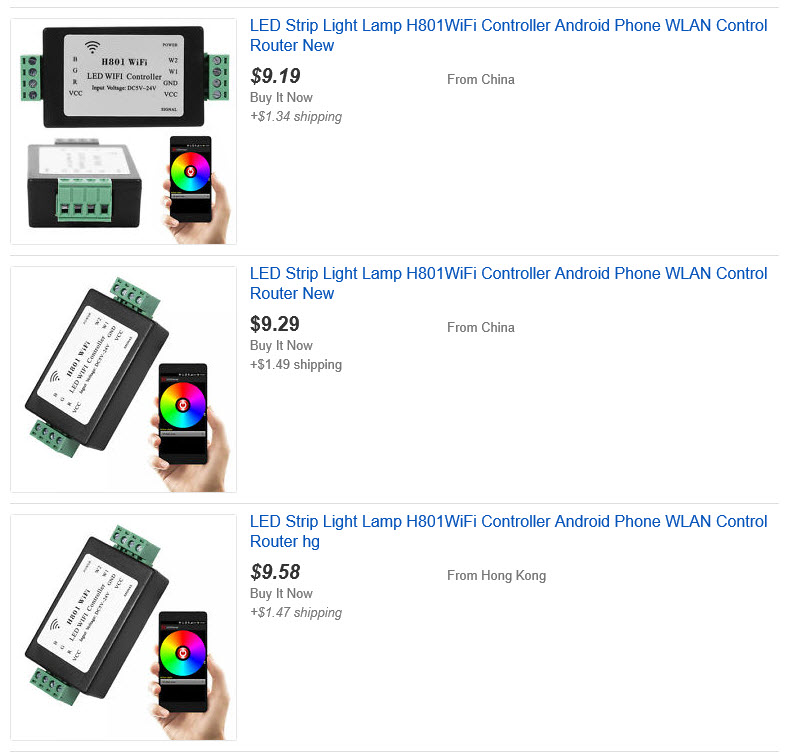

The amazing thing is that these units are $11 with shipping on ebay

Also want to note I am so proud of my kids today, my youngest is actually authoring videos on his own.  One of my daughter’s fixed our digital SLR camera without my help and another daughter figured out the sewing machine on her own.  My oldest has exceeded my academic skills.

They are becoming self sufficient.



This entry was posted in New Toys, Technical, Training. Bookmark the permalink.

3 Responses to ESP8266 for LED strips

  1. Larry Apolonio says:

    I made a mistake on the GPIO ports

    const byte redpin=15;
    const byte greenpin=13;
    const byte bluepin=12;
    const byte white1pin=14;
    const byte white2pin=4;
    const byte greenledpin=1;
    const byte redledpin=5;

    Also HIGH turns of the LED and LOW turns them on.

  2. Dan R. says:

    Right on with the kido’s!

    I like this thread here. I thought about putting up led strip lights on the eve of the house – and have it change colors depending on the season or day. But that would require addressable leds, yes? Then some kind of app for a phone (or web hosting page via ??) to change the colors – use a host, with a gps module to keep track of the days / time, and auto set colors per season? Red / White / Blu on patriotic days, Blue / Green for Sounders / Seahawks days, orange for Halloween…
