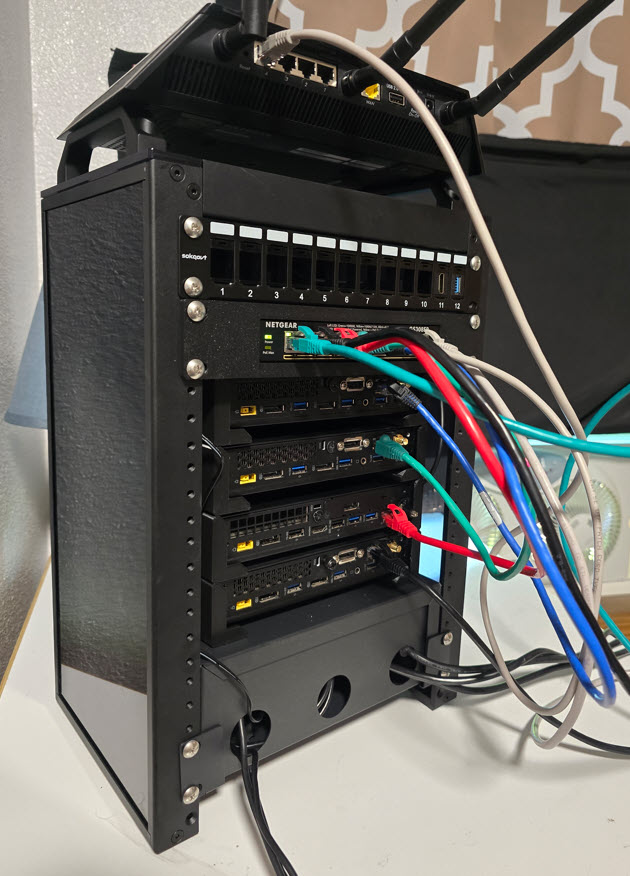

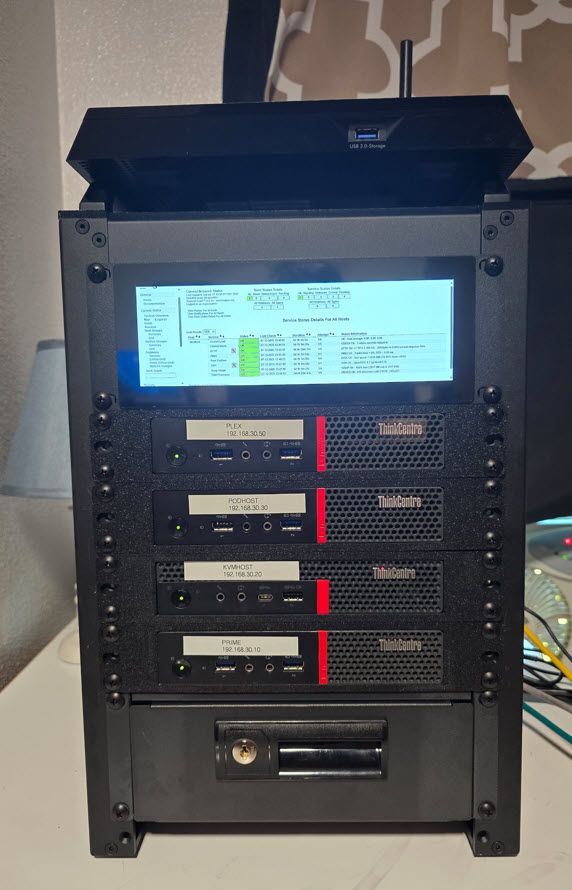

Took 4 days of my spare time (got a Full Time job) but I am done. Most of the future changes will be aesthetics, like color coded cables or keystones. But it looks good.
Will post more details, but it is looking clean.
Getting better wiring to clean things up as well
But that is more aesthetic and not so much functional other than easy color coded access.
Note that the Router is not going to be there permanently.

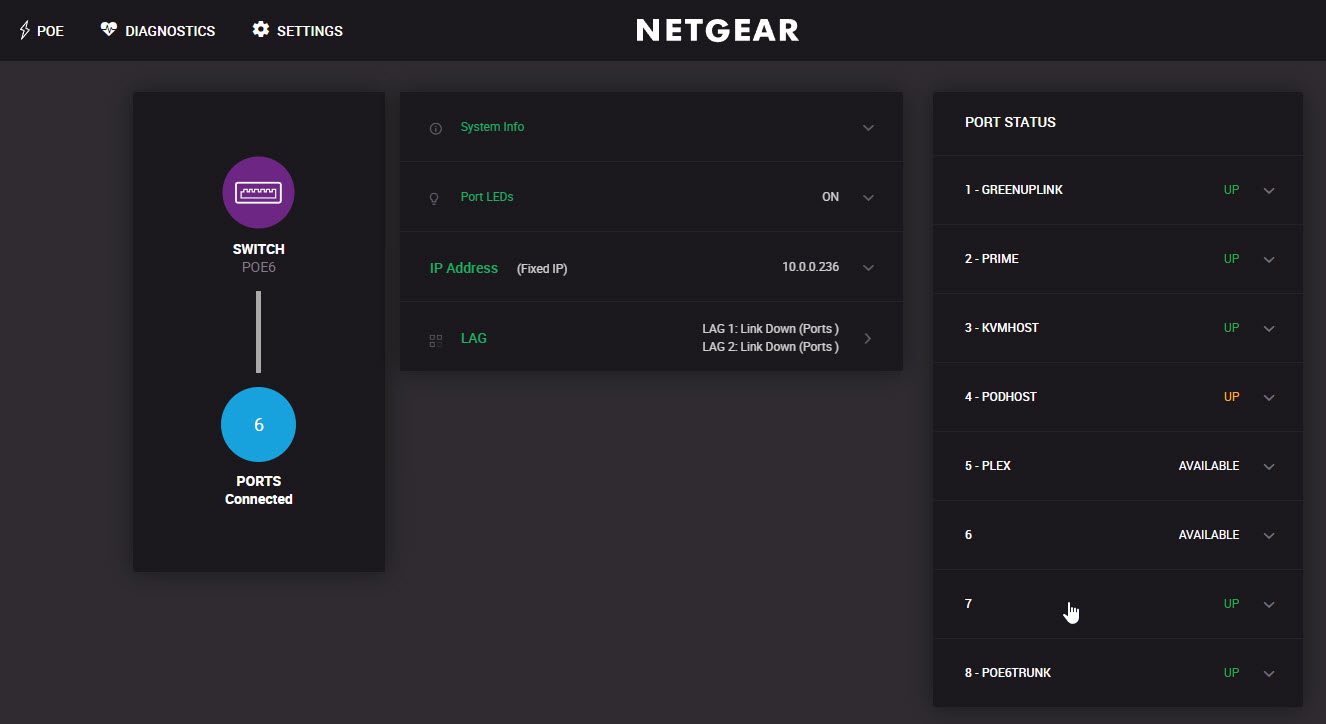

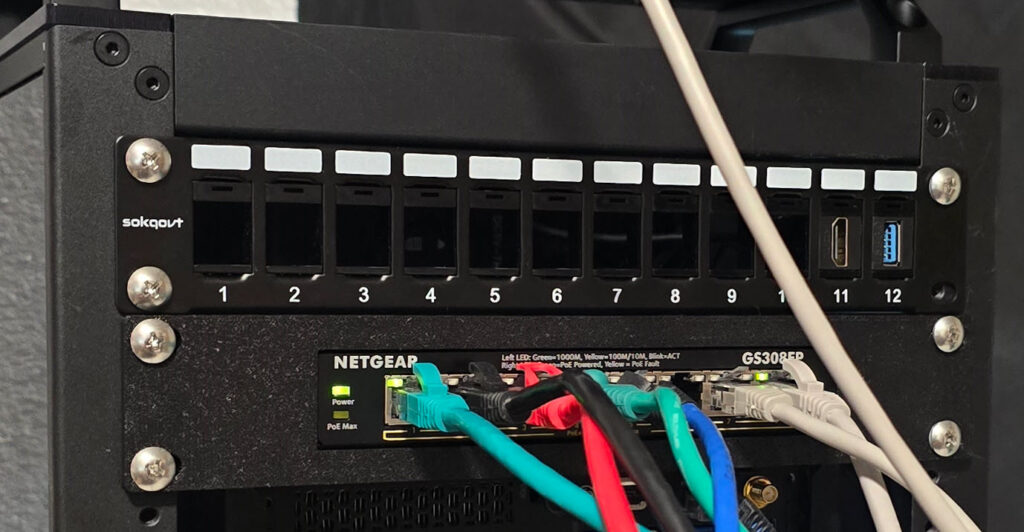

Still mulling over ideas for the keystone patch panel. But I do have a 1G Smart PoE switch

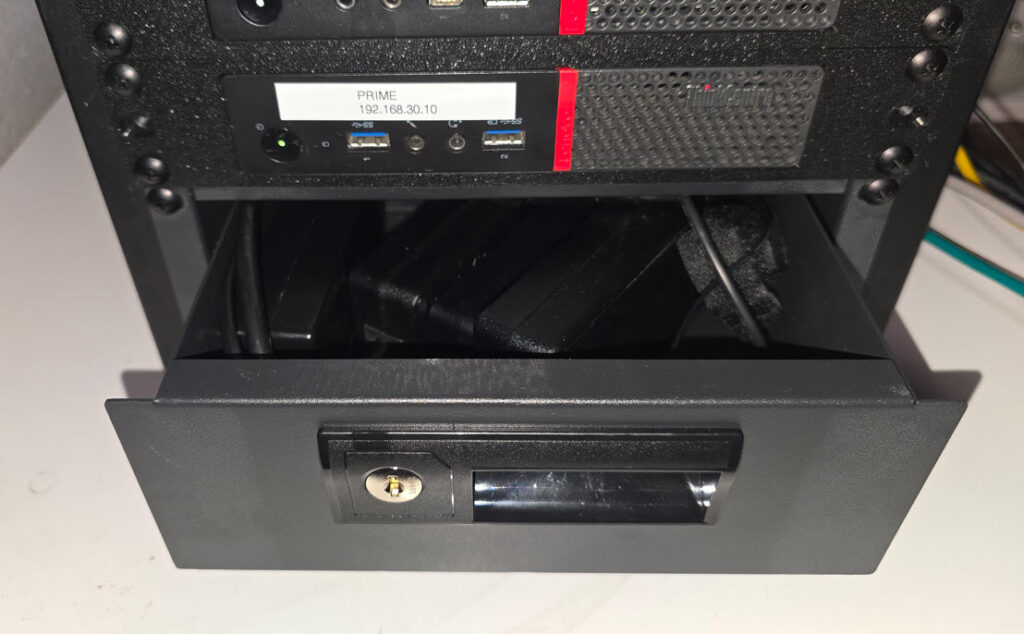

Not sure about shoving all the power supplies in the drawer

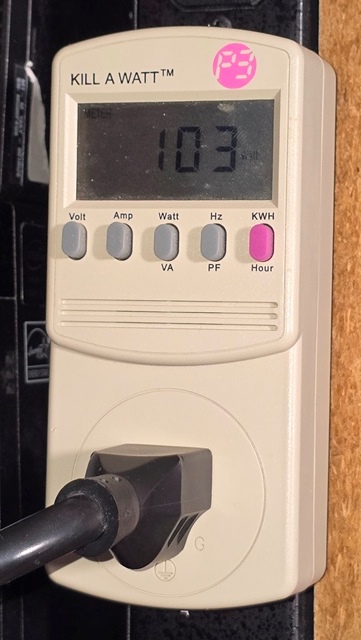

People will ask how much does it cost to power this, it is currently drawing 100Watts, including the router

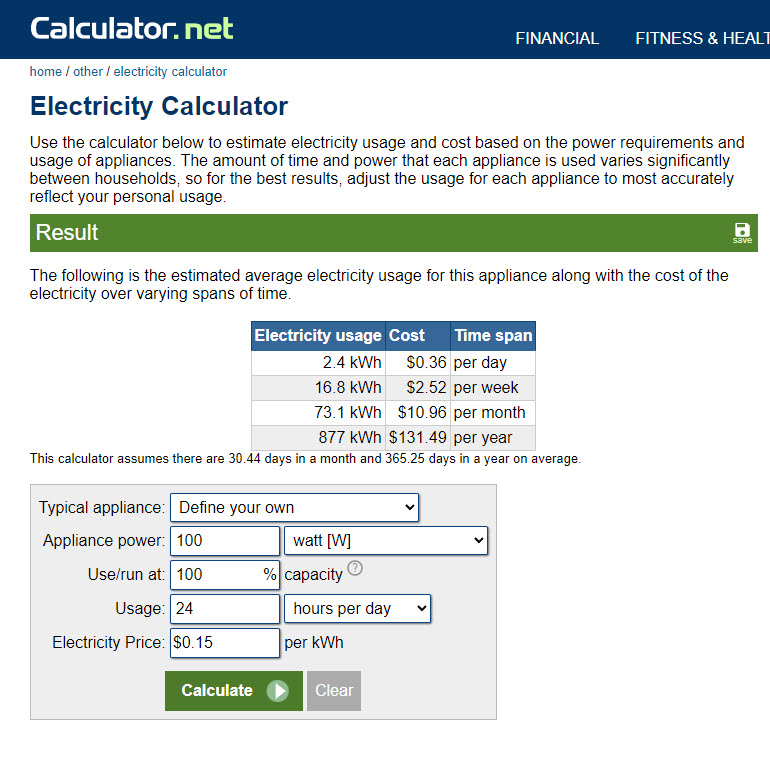

So would be over $130 per year in my area
Now to figure out the other mess
I should be able to start rebuilding and documenting the home server.
