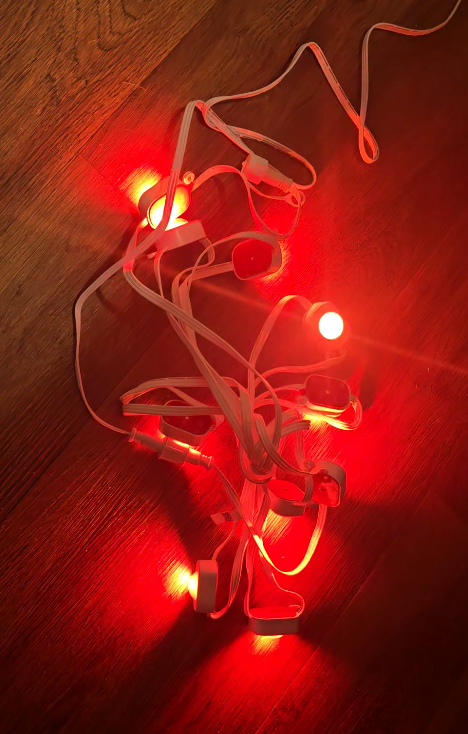

Been working on my outdoor WLED lights project and I got the electronics figured out. It actually lights up.

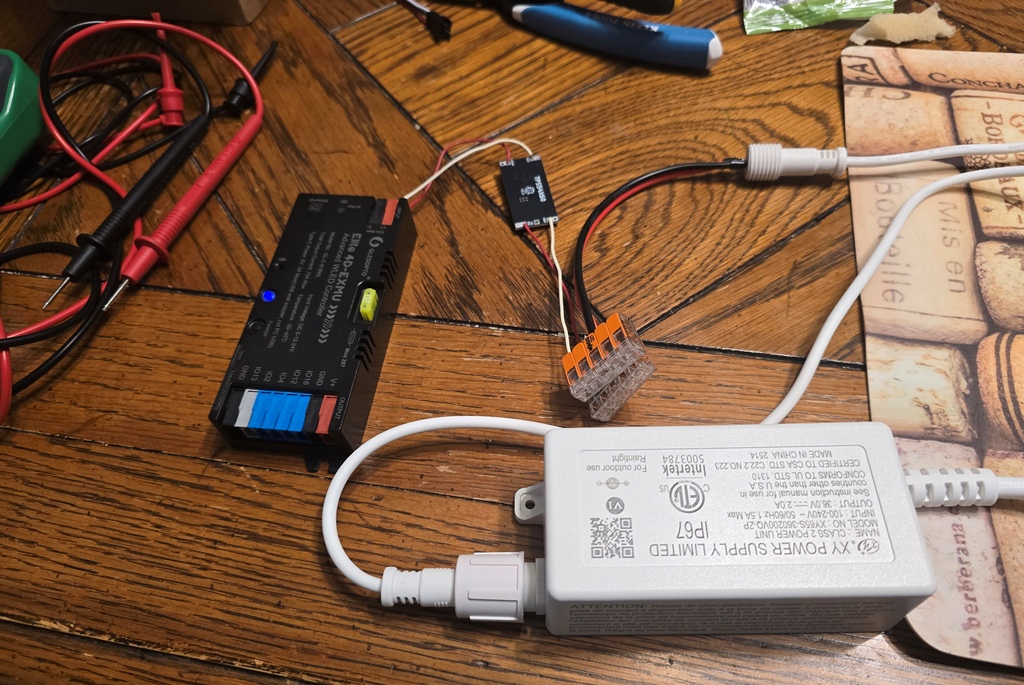

Here is the wiring I did, with a GLEDOPTO Elite 4 Channel ESP32. It is honestly overkill and I may get another.
I am getting a different power supply. But all this will be indoors and an extension will go outside to the lights. It will be ip67 compliant.
BUT
Now I need to figure out how to attach the lights to the outside. I thought I was 90% there but apparently, I am like 10% there.

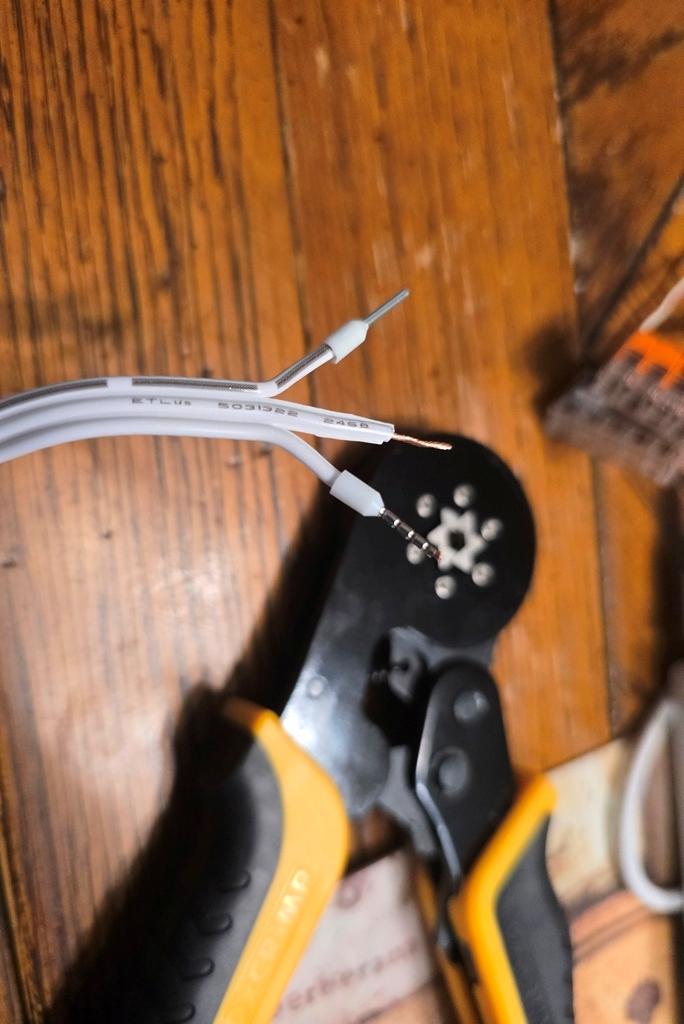

Made huge use of my ferule cimper.
On a side note Seahawks lost a close one.
